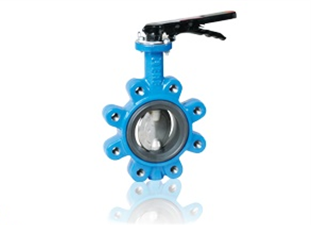

Butterfly valve 3600 lug stainless disc

PRODUCTION STANDARDS

DESIGN:                     TS EN 593
END CONNECTION: FLANGED TS EN 1092-2 / ISO 7005-2
FACE TO FACE:       TS EN 558 Seri 20
                                     ISO 5752 Seri 20
TEST:                          TS EN 12266-1
MARKING:                 TS EN 19







.

Giá cũ :
đ
Giá mới :
